HUMAN MODELS
THELONIOUS

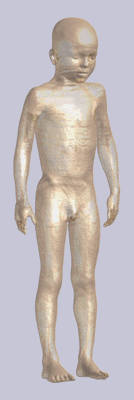

Thelonious



General Information

Sex male
Type
child
Age [Years] 6
Height [m]¹ 1.16
Weight [kg] 18.6
BMI [kg/m²] 13.8

¹ Height, Weight, and BMI are for V3.x









Version History

Version Specifications Download
cV3.1

Thelonious cV3.1 is based on the geometry of V3.0 and is ready for the new biomechanics-based FEM Poser in Sim4Life. The new poser treats the body as a hyperelastic material with rigid bones and provides more realistic posing compared to the previous approach. The tissue list has been updated and includes individual bones in the feet.

DOI: 10.13099/VIP11004-03-1
cV3.0

Thelonious cV3.0 offers posing functionality. It has been generated based on V3.0 by positioning pivot points to define centres of rotation in the joints and by assigning influence regions. These regions identify the body areas that are affected by the movement of associated bones and their degree of deformation.

DOI: 10.13099/VIP11004-03-0
V3.0

Thelonious V3.0 includes 299 tissues and is based on a resegmentation of V1.3 at higher resolution, a more consistent tissue assignment, enhanced surface processing, and anatomical refinements. Met requirements for unstructured mesh generation are: non-degenerate triangles, smooth surface patches, and water-tight, topologically conforming surfaces. V3.0 presents a limited number of self-interesections. Material assignment is possible using the properties database v2.5 or higher.

DOI: 10.13099/ViP-Thelonious-V3.0
V1.3 Thelonious V1.3 includes 76 tissues segmented from MRI data. The surfaces have been extracted and processed to generate topologically compatible, gap-free tissue geometries. Tissue properties can be assigned based on any version of the properties database.
Height: 1.17 m
Weight: 19.4 kg
BMI: 14.3 kg/m²
DOI: 10.13099/ViP-Thelonious-V1.3
