Morphed ViP 3.x: Covering Population Variability

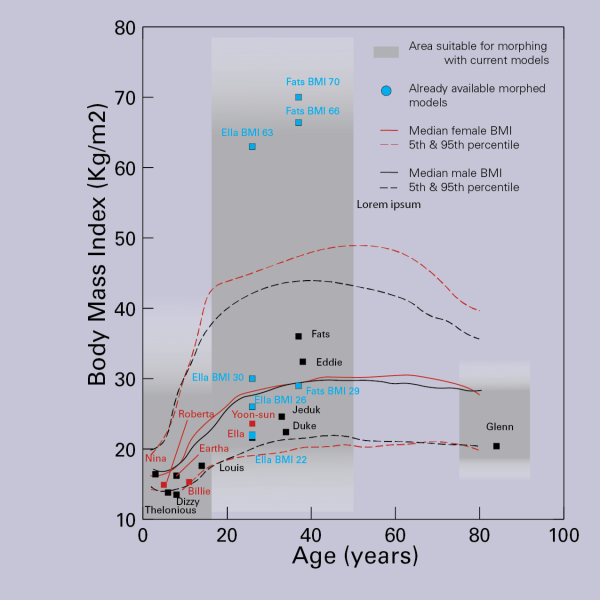

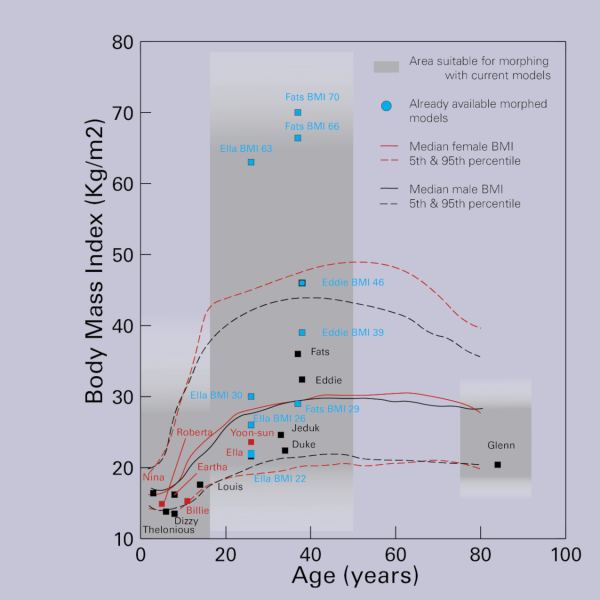

The morphed Virtual Population V3.x (mViP 3.1) models represent adapted versions of our existing models “Ella” and “Fats”. The adapted models include a selection of important gross anatomical descriptors, which allow investigations based on differences in e.g., the body mass index (BMI) or weight. Different morphed versions of Ella (22, 26, 30 kg/m²) and Fats (29, 33, 40 kg/m²) are currently available, or will be released continuously.

Physics-based morphing allows to modify the volume of specific tissues (e.g., subcutaneous adipose tissue, muscle) based on a realistic biomechanics simulation. Volume change of a tissue is introduced using a thermal expansion analogy, leading to elastic deformation of surrounding tissues, constrained by rigid bones.

Breast-Coil MRI

For simulation applications related to breast coil design or safety, an additional modified model of Ella (Ella Breast Coil) is provided. The model incorporates a new high resolution segmentation of breast tissues segmented from an MRI breast scan. The breast shape is typical of a patient during a breast scan in prone position (Ella was in supine position). Additionally, the model's head/neck has been made posable.








Name Sex



Age
[year]

Height1
[m]

Weight1
[kg]

BMI1
[kg/m²]

Ella BMI 22

female

26

1.63

57.3

22

Ella BMI 26

female

26

1.63

69.4

26

Ella BMI 30

female

26

1.63

79.7

30

Ella Breast Coil

female

26

1.63

58.2

21.9

Fats BMI 29

male

37

1.82

96

29

Fats BMI 332

male

37

1.82

109

33

Fats BMI 402

male

37

1.82

132

40

1 These values are calculated based on the latest version of the models and of the tissue properties database

2 These models will be released soon. For other versions (e.g., more obese) please contact the Virtual Population Group.



Systems Requirements

The above mentioned models require a 64-bit Windows XP and above operating system and at least 6 GB, respectively.



Distribution

Please address all inquiries regarding distribution to the Sim4Life sales team. To download the models, please click on any of the models in the table above to access the corresponding webpage. The download procedure will begin with a click on the model's DOI number.
